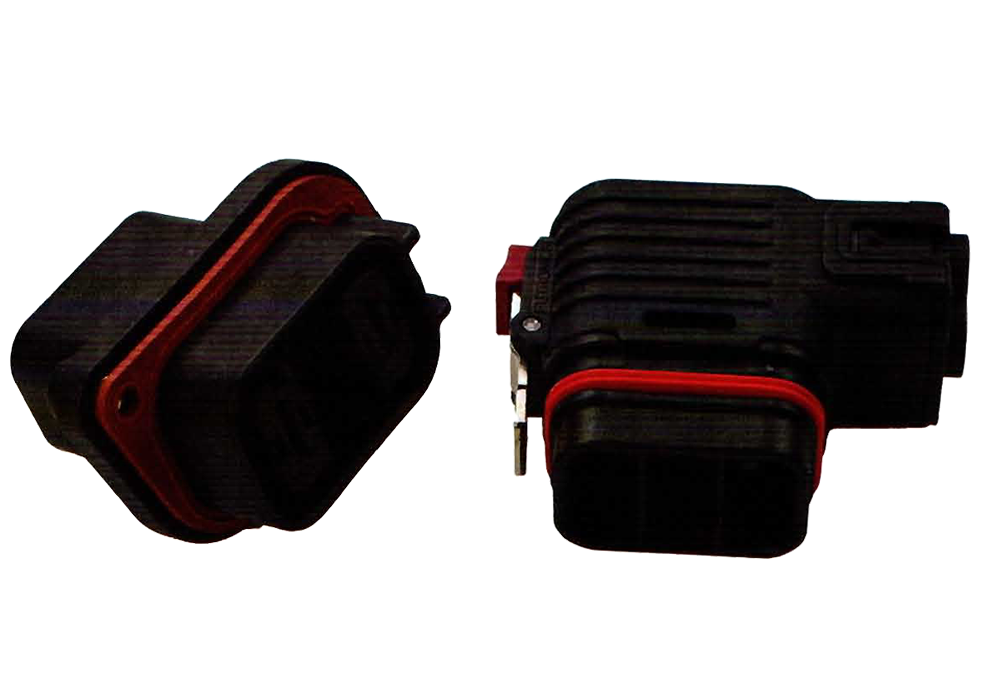

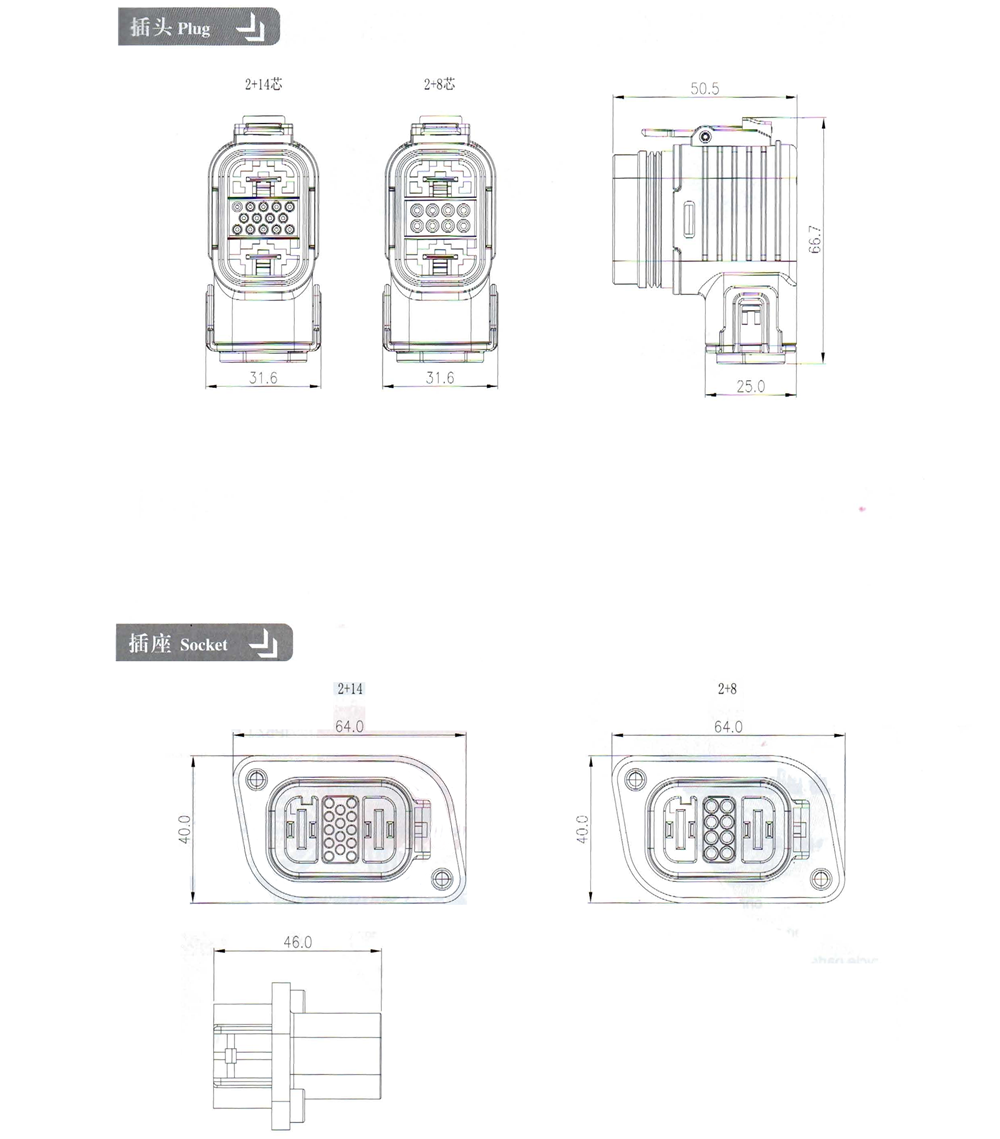

多芯连接器-(2+8/2+14)IP67 IP67 Power+Signal Hybrid Connector (2+8/2+14)

电气特性 Electrical performance

额定电流 Rated Current 80A/100A

额定电压 Rated Voitage 1000VDC 600V AC

绝缘电阻 Insulation Resistance  500MΩ MIN(干燥 drying)  200MΩ MIN(RH 95%)

测试电压 Test Voitage 4800V DC 2200V AC

机械特性 Mechanical performance

机械寿命 Minimum Mating Cycles 500

配线范围 Wire Range 10mm2~16mm2

耐环境性能Environment performance

防水等级 IP Degree IP67 mated

温度范围 Operation Temperature -40℃~125℃

盐雾等级 Salt Spray Resistance 144H(配合状态下)

参考标准Reference standard

USCAR-2

USCAR37

产品应用 Application

产品为车载低压塑胶连接器，产品用于如车载充电机、电  池包、电池等部件间的连接。

The product is vehicle mounted low-voltage plastic connector,which is used to connect components such as vehicle charger, battery pack and battery
