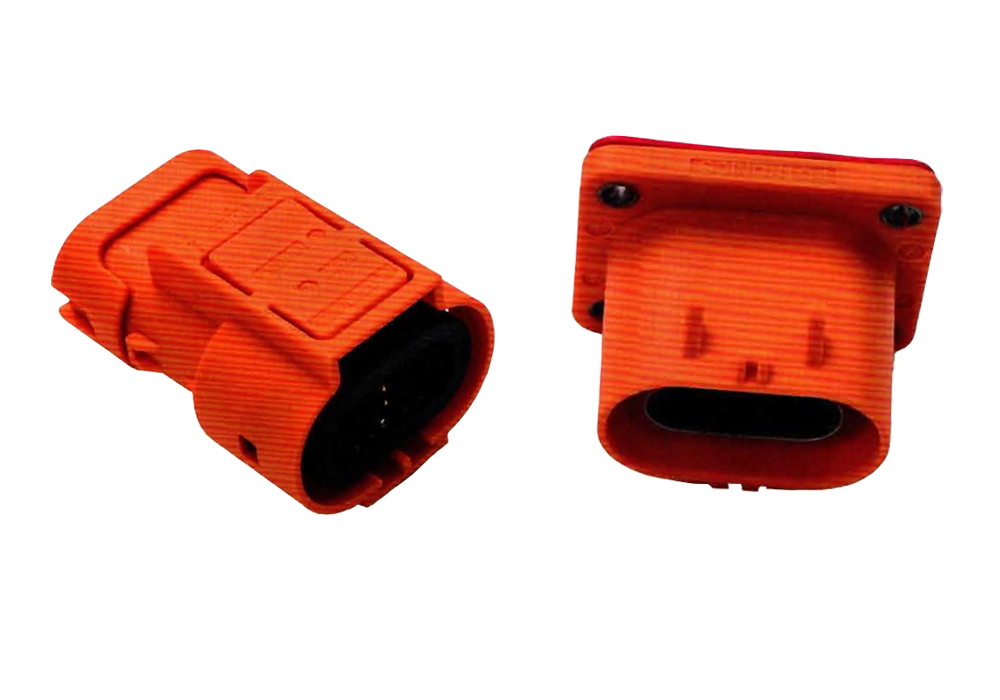

2芯2.5~16塑胶高压连接器 2-pin 2.5~16 mm2 Plastic Shell HV Connector

电气特性 Electrical performance

额定电流 Rated Current            20A/30A/45A/70A/80A

额定电压 Rated Voitage            1000V

绝缘电阻 Insulation Resistance  5000MΩ MIN(干燥 drying)  200MΩ MIN(RH 95%)

测试电压 Test Voitage               3000VAC

机械特性 Mechanical performance

机械寿命 Minimum Mating Cycles  500次

配线范围 Wire Range                      2.5mm²~16mm²

耐环境性能Environment performance

防水等级 IP Degree                      IP67B

温度范围 Operation Temperature -40℃~125℃

盐雾等级 Salt Spray Resistance     144H

参考标准 Reference standard

USCAR-2

USCAR37

ROSH

产品应用Application

产品为车载高压塑胶连接器，产品用于如车载充电机、电池包、高压配电盒、电机控制器、电机、空调、PTC、电池等部件间的高压连接。

The product is vehicle mounted high-voltage plastic connector,which is used for high-voltage connection between components such as vehicle charger,battery

pack,high-voltage distribution box, motor controller  motor,air conditioner,PTC,battery etc.
