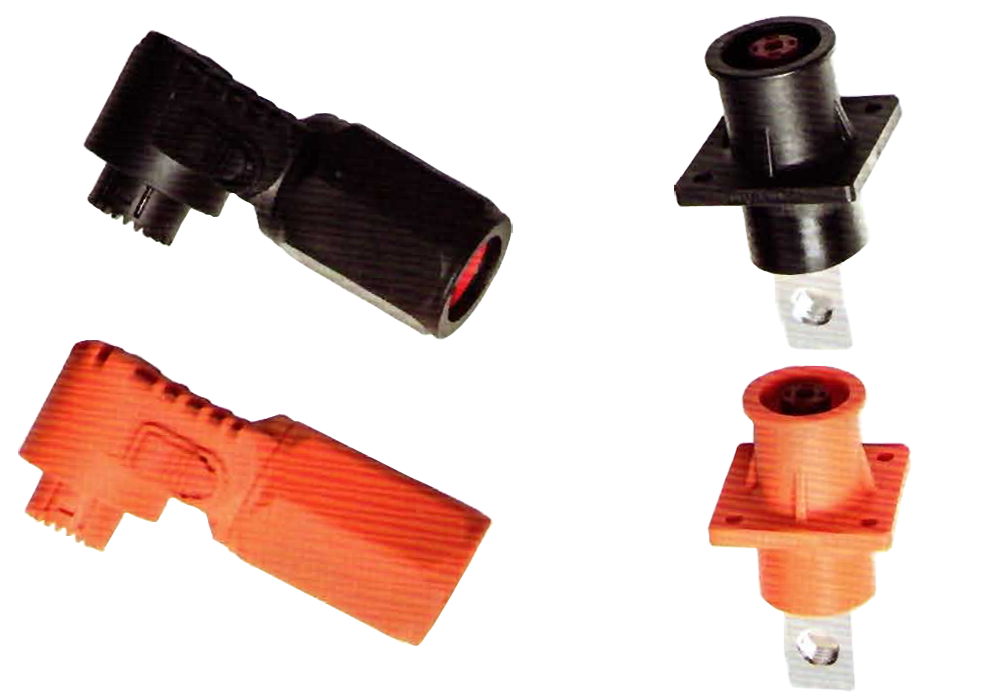

8.0单芯弯头连接器(IP67B)

UL1500V8.0 Single Pin 90°Angle Connector (IP67B)UL 1500V

电气特性 Electrical performance

额定电流 Rated Current            250A

额定电压 Rated Voitage            UL DC1500V

绝缘电阻 Insulation Resistance  5000MΩMIN(干燥drying)200MΩ MIN(RH 95%)

测试电压 Test Voitage               6800V AC

机械特性Mechanical performance

机械寿命 Minimum Mating Cycles 500

配线范围 Wire Range                    2/0 AWG

耐环境性能Environment performance

防水等级 IP Degree                      IP67B

温度范围 Operation Temperature -40℃~125℃

盐雾等级 Salt Spray Resistance     144H

参考标准Reference standard

UL4128

产品应用Application

产品为储能塑胶连接器，产品用于如储能柜，储能站，移

动储能车，光伏发电站等部件间的高压连接。

The product is energy storage plastic connector which is

used for high-voltage connection between components

such as energy storage cabinetenergy storage station,

mobile energy storage vehicle,photovoltaic power

station, etc.
