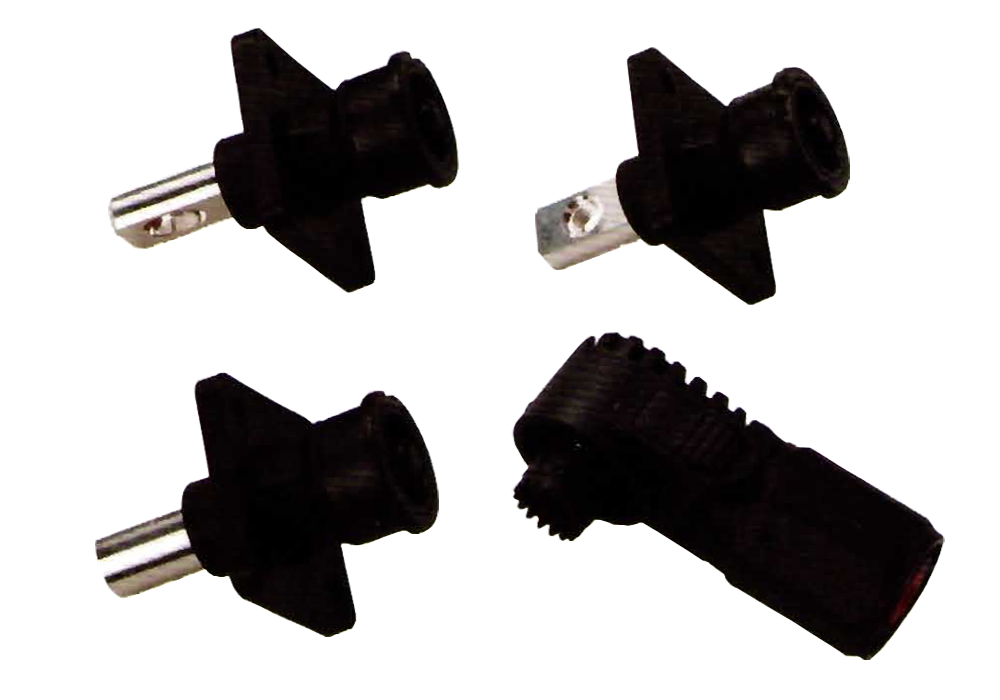

6.0单芯弯头连接器(短款)

(IP67B)6.0Single Pin 90°Right Angle Connector TUV Approved (IP67B)

电气特性 Electrical performance

额定电流 Rated Current:           70A/100A/125A

额定电压 Rated Voitage:           DC1000V

绝缘电阻 Insulation Resistance: 5000MΩ MIN(干燥 drying) 200MΩ MIN(RH 95%)

测试电压 Test Voitage:              3000VAC

机械特性Mechanical performance

机械寿命Minimum Mating Cycles:  500

配线范围 Wire Range:                    10mm²~25mm²

耐环境性能Environment performance

防水等级 IP Degree:                      IP67B

温度范围 Operation Temperature: -40℃~125℃

盐雾等级 Salt Spray Resistance:     144H

参考标准Reference standard

TUV 2pfG 2740-04.20

USCAR-2

USCAR37

产品应用 Application

产品为储能塑胶连接器，产品用于如储能柜，储能站，移

动储能车，光伏发电站等部件间的高压连接。

The product is energy storage plastic connector,which is

used for high-voltage connection between components

such as energy storage cabinet,energy storage station,

mobile energy storage vehicle,photovoltaic power

station, etc.
